Network Living and Library

Project in collaboration with Nayeli Henriquez. A proposed housing complex and public library located on the Monument Square Site in Downtown Troy, NY. The goal of this project is to “rebrand” Troy as a center for small business and entrepreneurship by providing a unique living style for young professionals with the interaction to the city. The original design for the project was inspired by the Calgery Public Library (Canada) and the Gifu Apartments (Japan). The modular shapes from the Gifu apartments inspired the shapes of the living units. The curves from the Calgery Library inspired the slope that makes up the main atrium space for the project and unifies the whole massing.

2020
Course: Architectural Design Studio 4
Critic: Yael Erel

Exterior Render- Aerial view

Exterior Render- From the river
Exterior Render- From the river
Exterior Render - View at edge of river
Exterior Render - View at edge of river

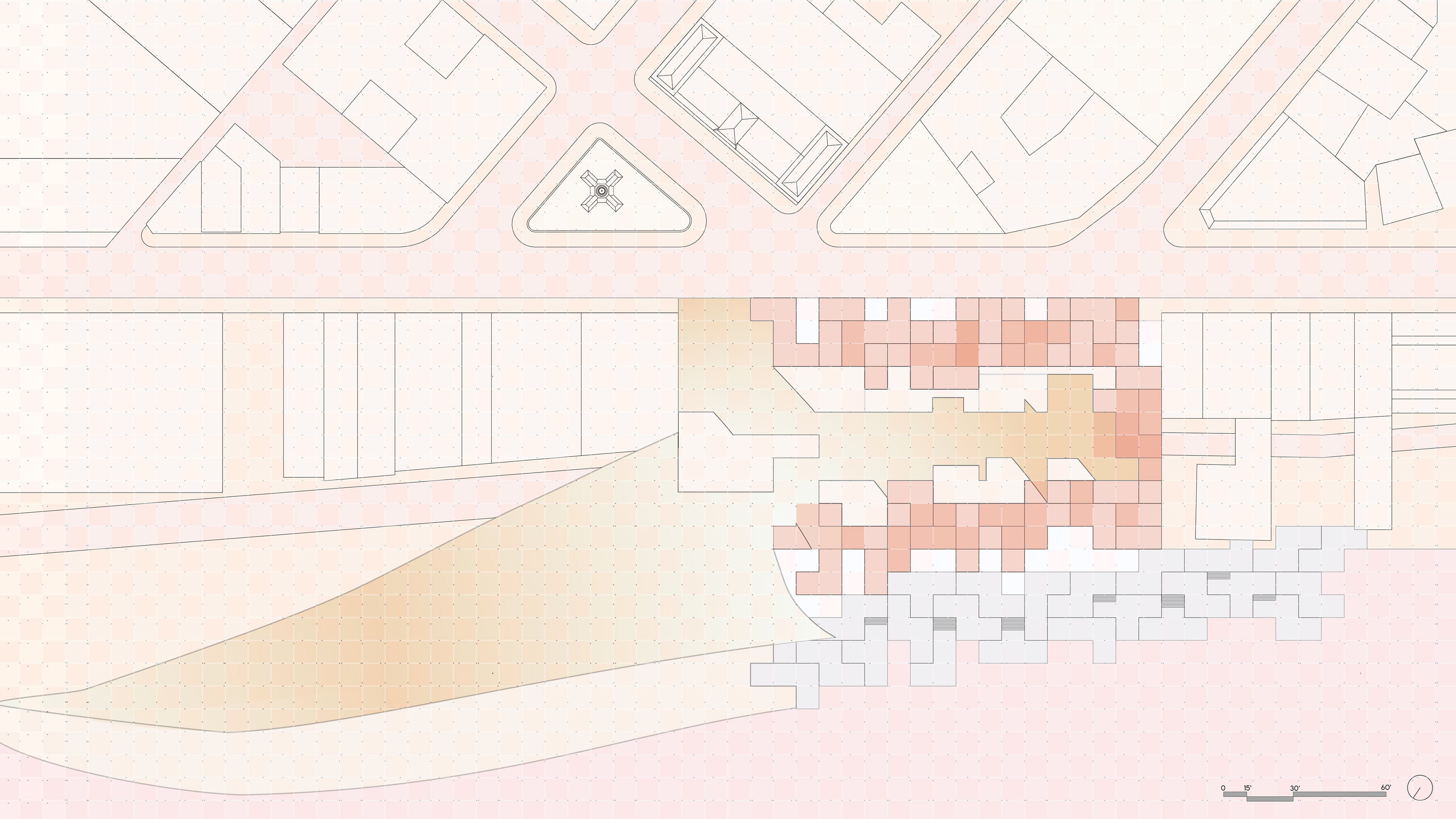

Site Plan

Plans

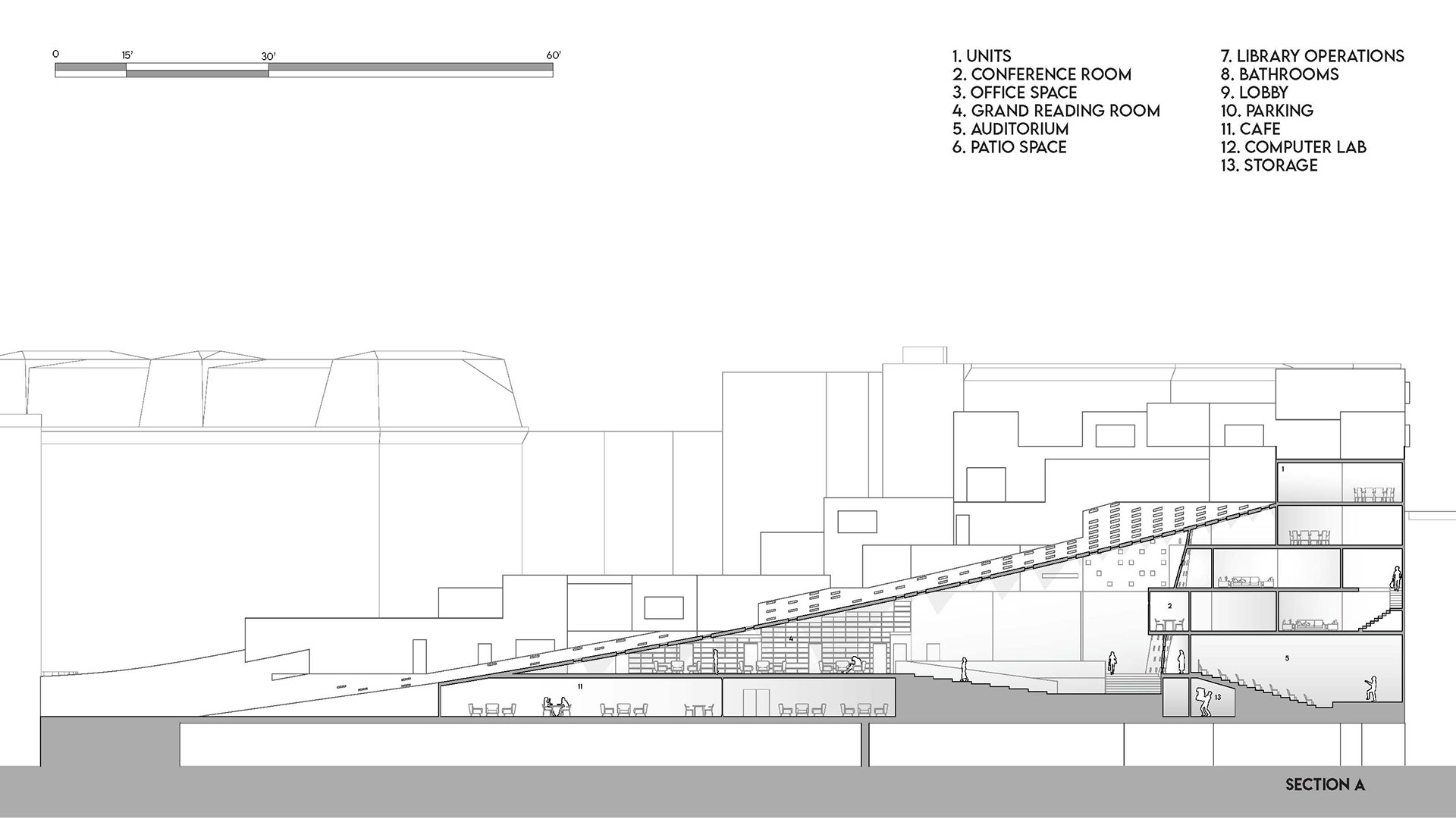

Longitudinal Section - Through Lobby, auditorium, and units

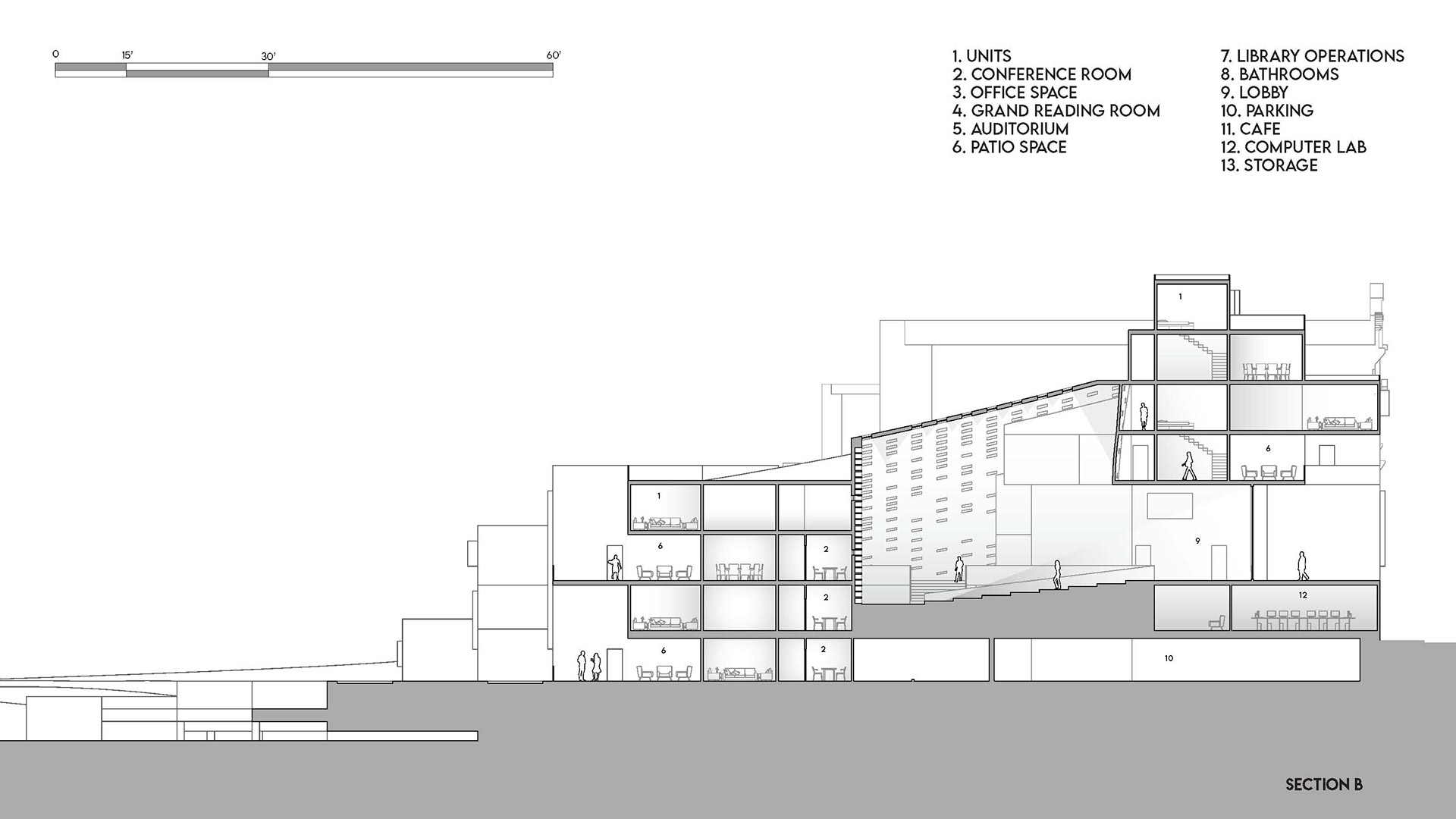

Cross Section - Through Lobby
Cross Section - Through Lobby

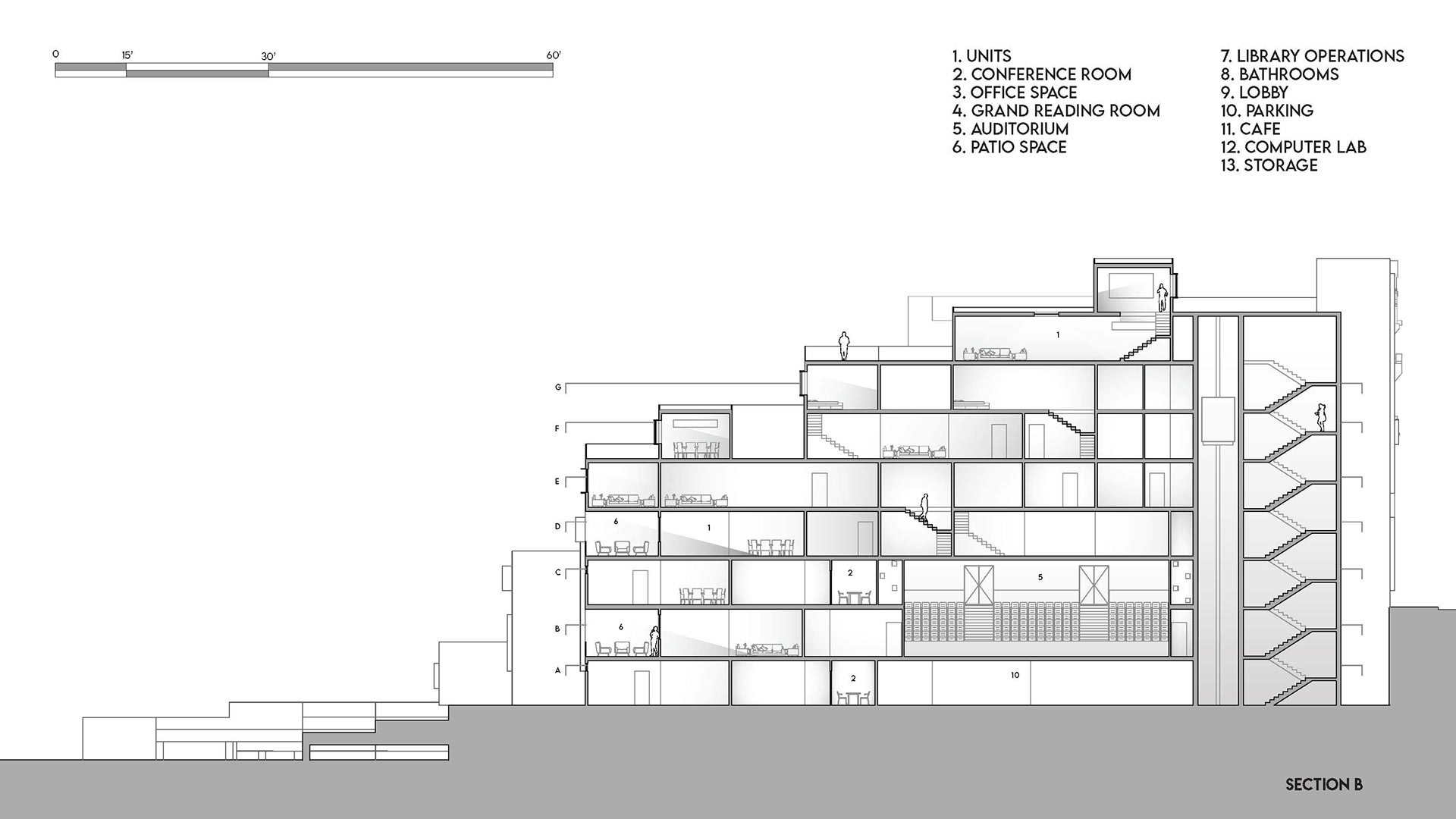

Cross Section - Through Units and Auditorium
Cross Section - Through Units and Auditorium

Interior Render- Main Library Space

Interior Render- Corridors
Interior Render- Corridors
Interior Render- Lobby Space
Interior Render- Lobby Space

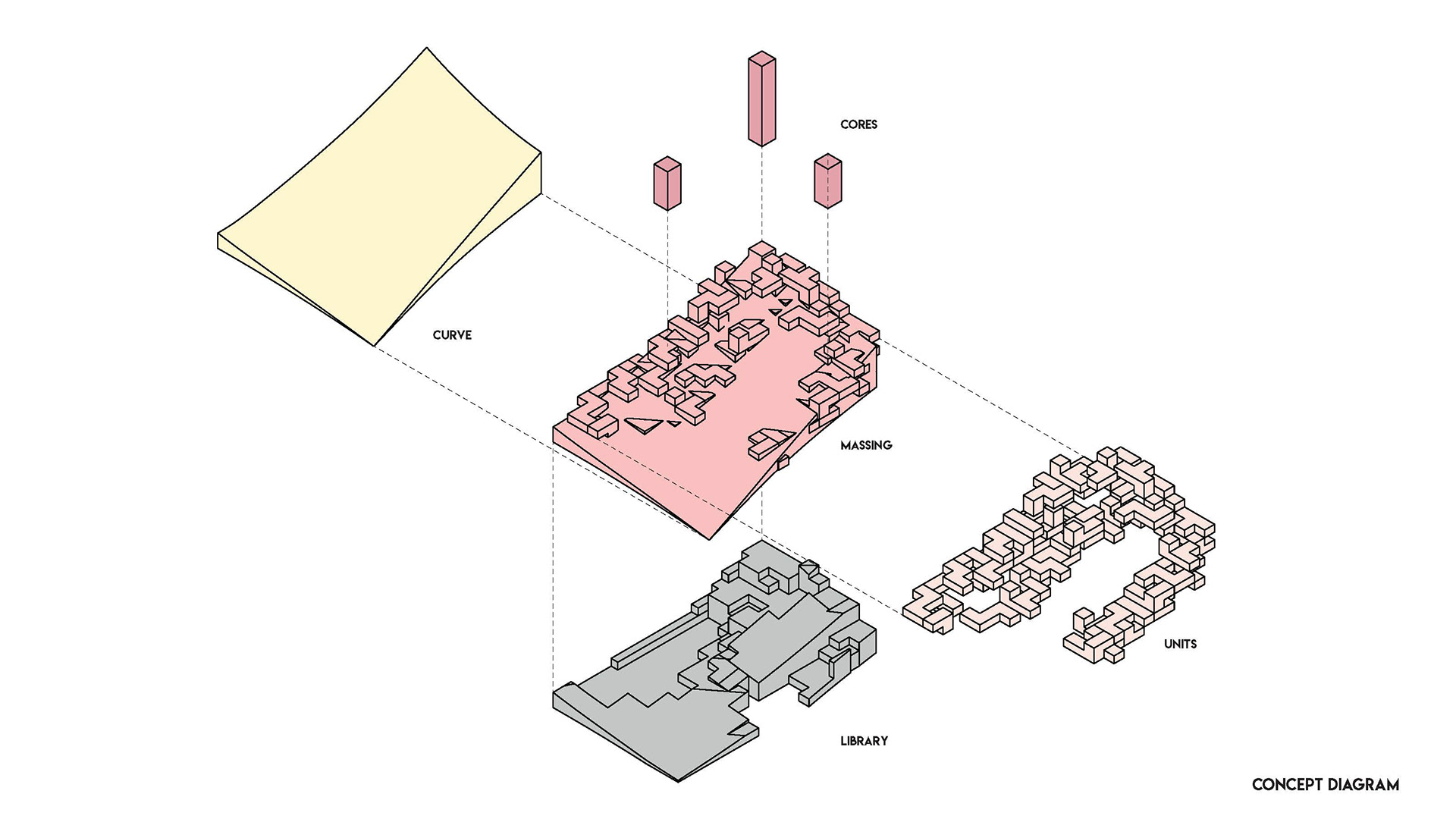

Main Concept Diagram
Main Concept Diagram

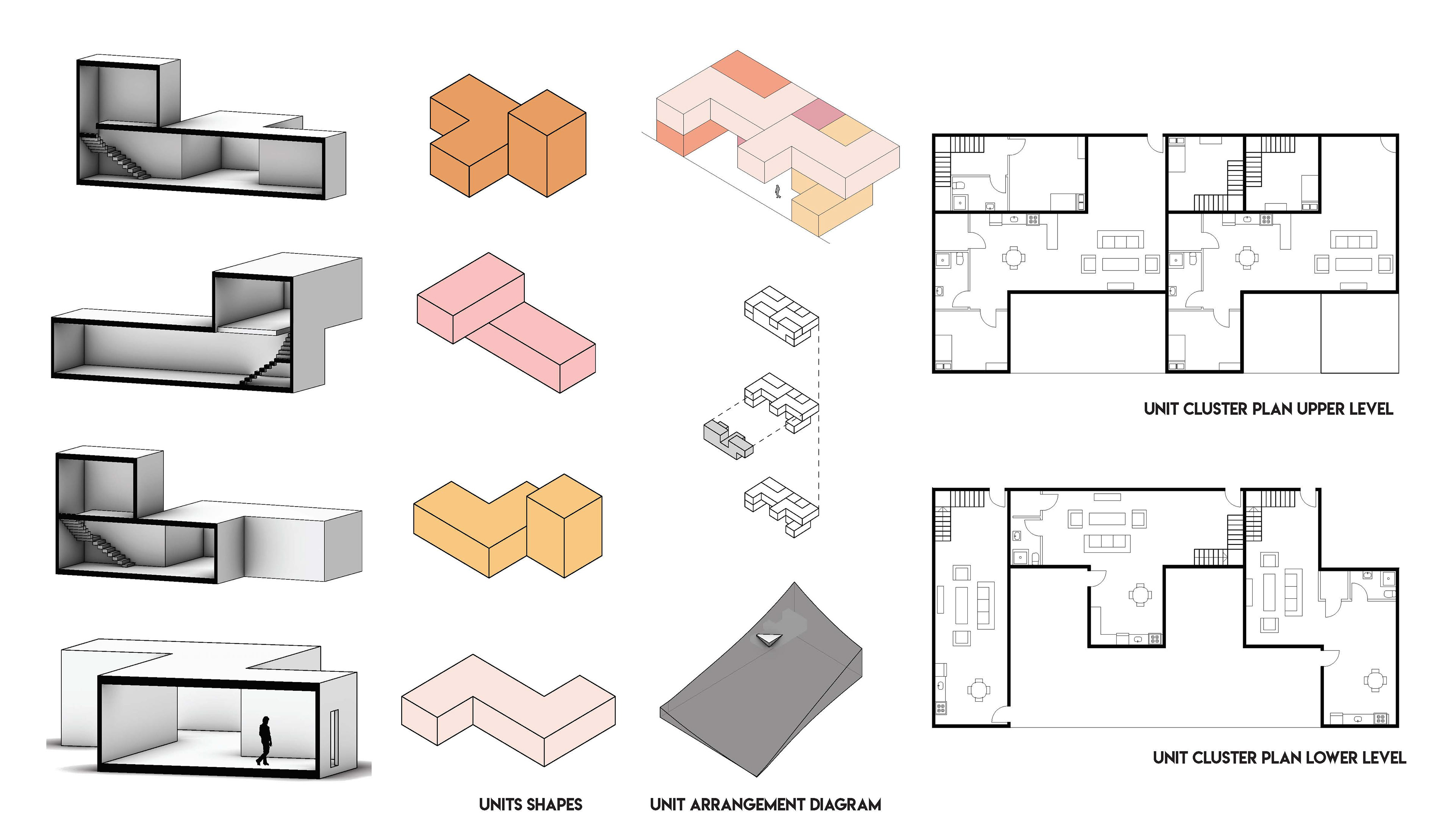

Unit Shapes and Plans/Sections
Unit Shapes and Plans/Sections
